Product overview
••••••••••••••••••••••••••••••••••••••••••••••
The Modulus T Node, MPC Pluggable is a component of MPC Multi-Layer Pluggable PxPC which being combined fulfills NATO SDIP-27 Level A, B and C requirements.
Eurotempest Modulus T Node, MPC Pluggable

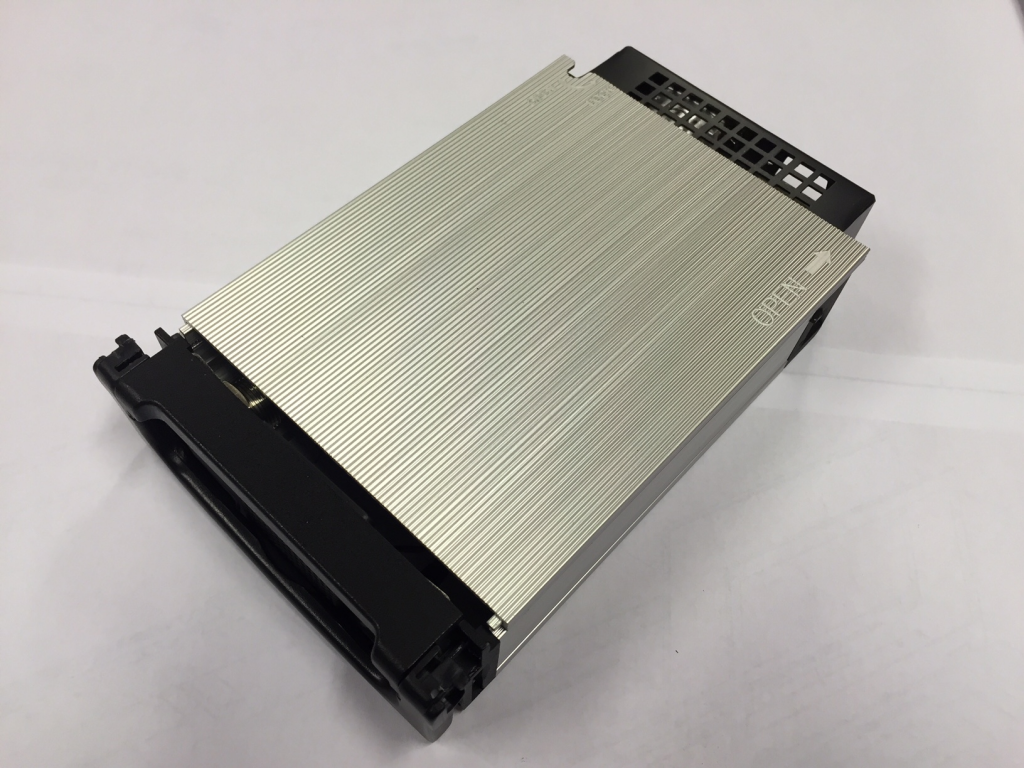

Key-locked slot-caddy removable physical matching mechanism (number of caddies dedicated for slot 1, 2, 3, and 4 to be agreed on order)
CPU: Intel Core i5-7300U Processor
RAM: 4GB DDR4 SODIMM (upgrade options up to 32GB available)
Storage: 128GB M.2 SSD (upgrade options up to 1TB M.2 SSD available)
Graphics: Integrated Intel UHD Graphics 620
Audio: High Definition (HD) Audio Line In / Line Out
USB ports: 1x standard USB-A 2.0 on front panel (behind the door when mounted into multi-layer PC chassis)
Optional fiber optic interface: 1x 100Base-FX or 1000Base-SX
Optional 1x TEMPEST DB9 Serial port
Power supply with 85% efficiency at full load
BIOS features BIOS provides ability to enable / disable use of Serial, Parallel, USB and IEEE-1394a, etc. ports (If such ports are supplied with computer). It provides the ability to permit, restrict and set booting priorities from network or media. There is provided possibility to enable PC boot only from a certain media drive. Two levels of BIOS password security (user and administrator) provided.
Onsite warranty up to 60 months, NBD (next business day)
