Product overview
•••••••••••••••••••••••••••••••••••••••••••••••••••••
The Modulus TC503 workstation fulfills NATO SDIP-27 Level A, B and C requirements. Its default configuration offers a very cost-effective alternative for secure environments. High-performance configurations are available upon request.

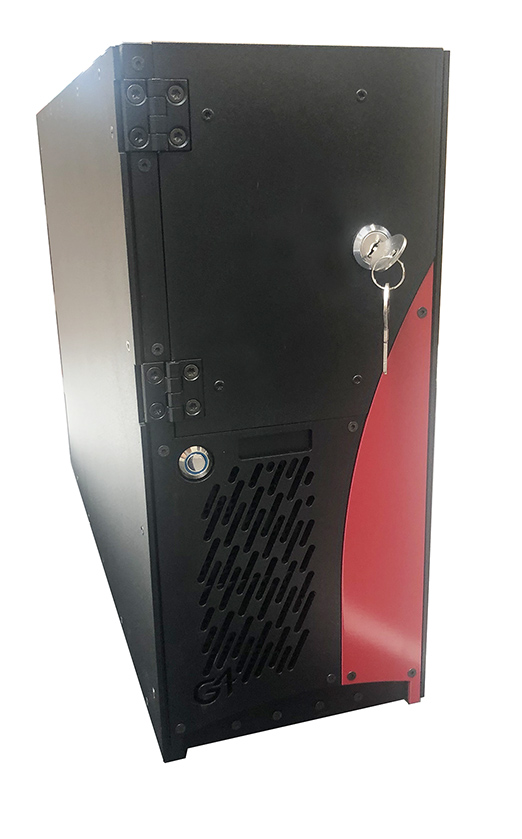

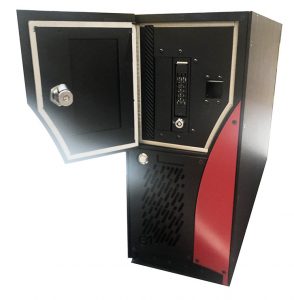

Eurotempest MODULUS TC503 workstation
Processor Intel Core i3-8100 @ 3.60GHz, Passmark Performance Test CPU Mark – 8005 or better (upgrade options up to Intel Core i9 9900 available on request)
RAM 8GB, DDR4, 2400MHz (upgrade up to 64GB available on request)
HDD 500GB 7200rpm SATA III, 2.5 HDD,removable (upgrade options up to HDD 2TB 7200rpm SATA III or SSD 512GB available on request)
Optional optical disk drive DVD-ROM or DVD/CD±RW available
Upgrade Second HDD up to 2TB 7200rpm SATA III or SSD 512GB available on request
Enclosure dimensions:
Level B TEMPEST Tower Form Factor (37 cm x 15,4 cm x 37 cm)
Level A TEMPEST Tower Form Factor (45 cm x 25 cm x 65 cm)
Upgrade options:
Level B TEMPEST Small Form Factor (31 cm x 10 cm x 34 cm)
Level A TEMPEST Small Form Factor (35 cm x 25 cm x 55 cm)
TEMPEST RackMount Form Factor (24,1 cm x 9 cm x 45 cm)
Video: Integrated Intel HD Graphics 630, Passmark Performance Test G3D Mark – 1141
Audio: Integrated High Definition (HD) Audio
Connectivity:
1x TEMPEST digital video output interface (max. 2 video ports available on request)
1x T-Audio 3.5 mm Line Out
1x T-Audio 3.5 mm Line In
Depending on requested security level: 4x rear T-USB2.0 and/or T-USB3.0 or 4x rear USB 2.0 T-DB9 ports free of use
Depending on requested security level: 1x T-USB or 1x T-DB9 keyboard port
Depending on requested security level: 1x T-USB or 1x T-DB9 mouse port
Network: No. Optional optical fiber interface: 1x 100Base-FX or 1000Base-SX available
Optional 1x TEMPEST Serial port
Optional 2x TEMPEST USB 3.0 ports
Option: Optional port sealing for controlled access available on request
Power supply: 80 PLUS Platinum, 250W active PFC, 91/93/90% efficient at 20/50/100% load (230V), with 90%efficiency at full load.
Optional Power filter: chassis integrated power line filter to meet NATO SDIP-29 and SDIP-27 Level A, B and C requirements.
BIOS features BIOS provides ability to enable / disable use of Serial, Parallel, USB and IEEE-1394a, etc. ports (If such ports are supplied with computer). It provides the ability to permit, restrict and set booting priorities from network or media. There is provided possibility to enable PC boot only from a certain media drive. Two levels of BIOS password security (user and administrator) provided.
Product overview
•••••••••••••••••••••••••••••••••••••••••••••••••••••
The Modulus T HP EliteOne 800 G5 TEMPEST AIO fulfills NATO SDIP-27 Level A, B and C requirements. Its default configuration offers a very cost-effective alternative for secure environments. High-performance configurations are available upon request.
Modulus T HP EliteOne 800 G5 TEMPEST AIO
Processor Intel Core i3-8100 @ 3.60GHz, Passmark Performance Test CPU Mark – 8005 or better (upgrade options up to Intel Core i9 9900 available on request)
RAM 4GB, DDR4 (upgrade options up to 64GB)
HDD 500GB 7200rpm SATA III, 2.5 HDD,removable (upgrade options up to HDD 2TB 7200rpm SATA III or SSD 512GB available on request)
Upgrade with an additional HDD up to 2TB 7200rpm SATA III or SSD 512GB available
Integrated ODD options: (1)DVD-ROM, (2)DVD/CD±RW, (3)BluRay/DVD±RW
Video: Integrated Intel HD Graphics 630
Screen
Viewable size: 23,8″
Panel type: IPS
Aspect ratio: 16:9
Native resolution: 1,920×1,080 @ 60Hz
Contrast ratio: 1000:1
Brightness: 250cd/m²
Viewing angle (H/V): 178°/178°
Height adjustment: 100mm
Connectivity
1x TEMPEST digital video output interface (max. 2 video ports available on request)
1x T-Audio Out and 1x T-Audio In
2x rear T-USB/DB9 2.0 free of use
1x T-USB/DB9 keyboard port
1x T-USB/DB9 mouse port.
Network: No. Optional optical fiber interface: 1x 100Base-FX or 1000Base-SX available
Option: Optional port sealing for controlled access available on request
Power supply: 80 PLUS Platinum, 250W active PFC, 91/93/90% efficient at 20/50/100% load (230V), with 90%efficiency at full load
Optional Power filter: integrated power line filter to meet NATO SDIP-29 and SDIP-27 Level A, B and C requirements.
BIOS features BIOS provides ability to enable / disable Serial, Parallel, USB and IEEE-1394a, etc. port usage (If such ports are supplied with computer). It provides the ability to permit, restrict and set booting priorities from network or media. There is provided possibility to enable PC boot only from a certain media drive. Two levels of BIOS password security (user and administrator) provided.
Onsite warranty up to 60 months, NBD (next business day)
